The Build
This one is all about going to the nth degree of customization to get to a fully integrated road package, all designed and built under one roof. Make it your dedicated road shredder, or stick some fat rubber under it and do it all.
I handmake my own carbon fiber airfoil-shaped seat tube, with a bespoke designed titanium seat mast and custom removable titanium front derailleur clamp. A custom surface-matched headset top cap finishes it off. Mechanical shifting ready, 1x ready, haulin' ass ready.
Start Your BuildDesign Details
The airfoil-shaped seat tube is carbon fiber I lay up by hand, here, in the basement. It gets paired to Reynolds 853 and Columbus MAX everywhere the steel does a better job, plus 3D-printed 17-4 stainless at the junctions that need it.

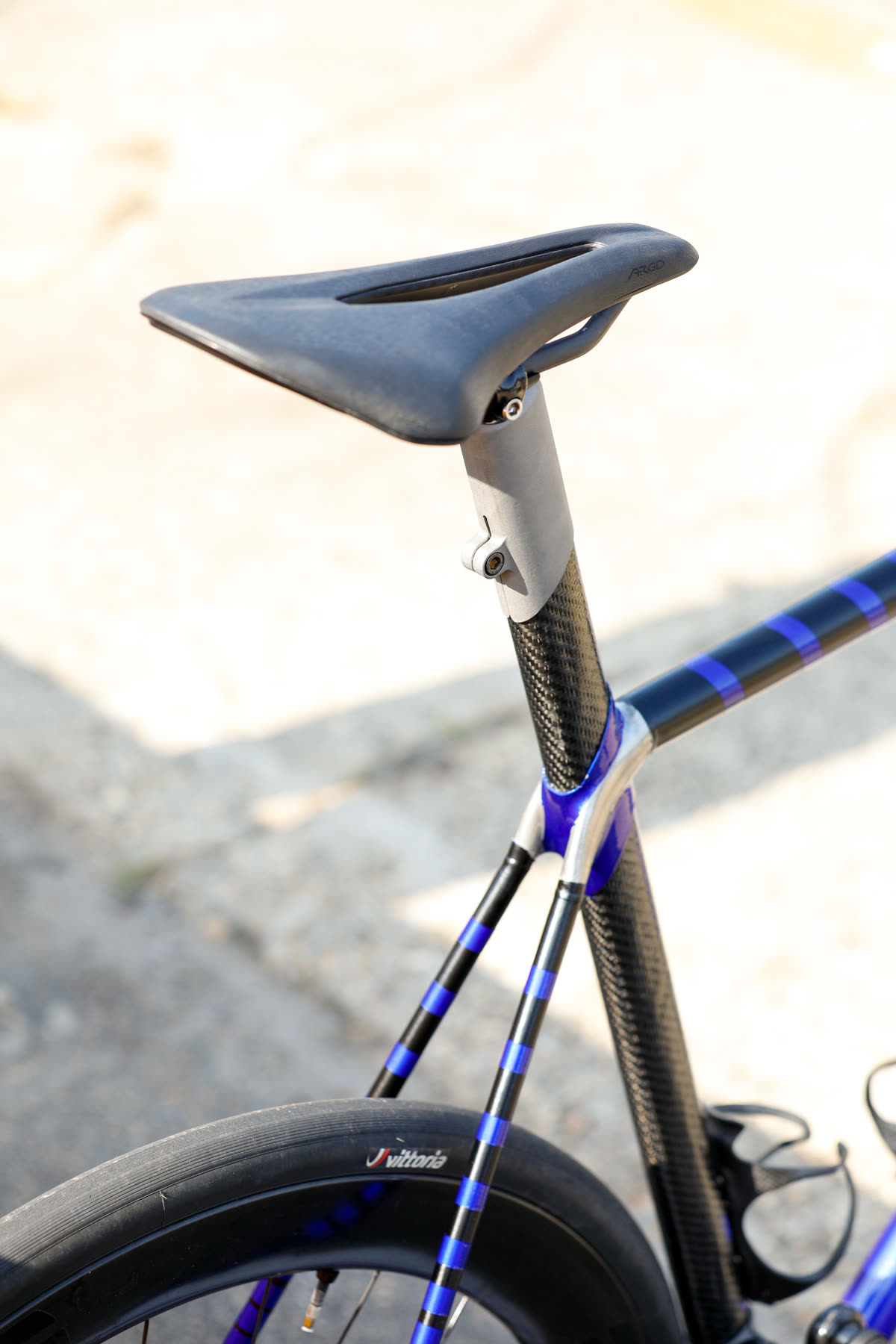

A bespoke titanium seat mast running a Ritchey 1-bolt head. A custom titanium front derailleur clamp that comes fully off when you go 1x, so there is nothing hanging out there looking lonely. Custom titanium headset topcap surface-matched to your geometry and compatible with any standard you want.

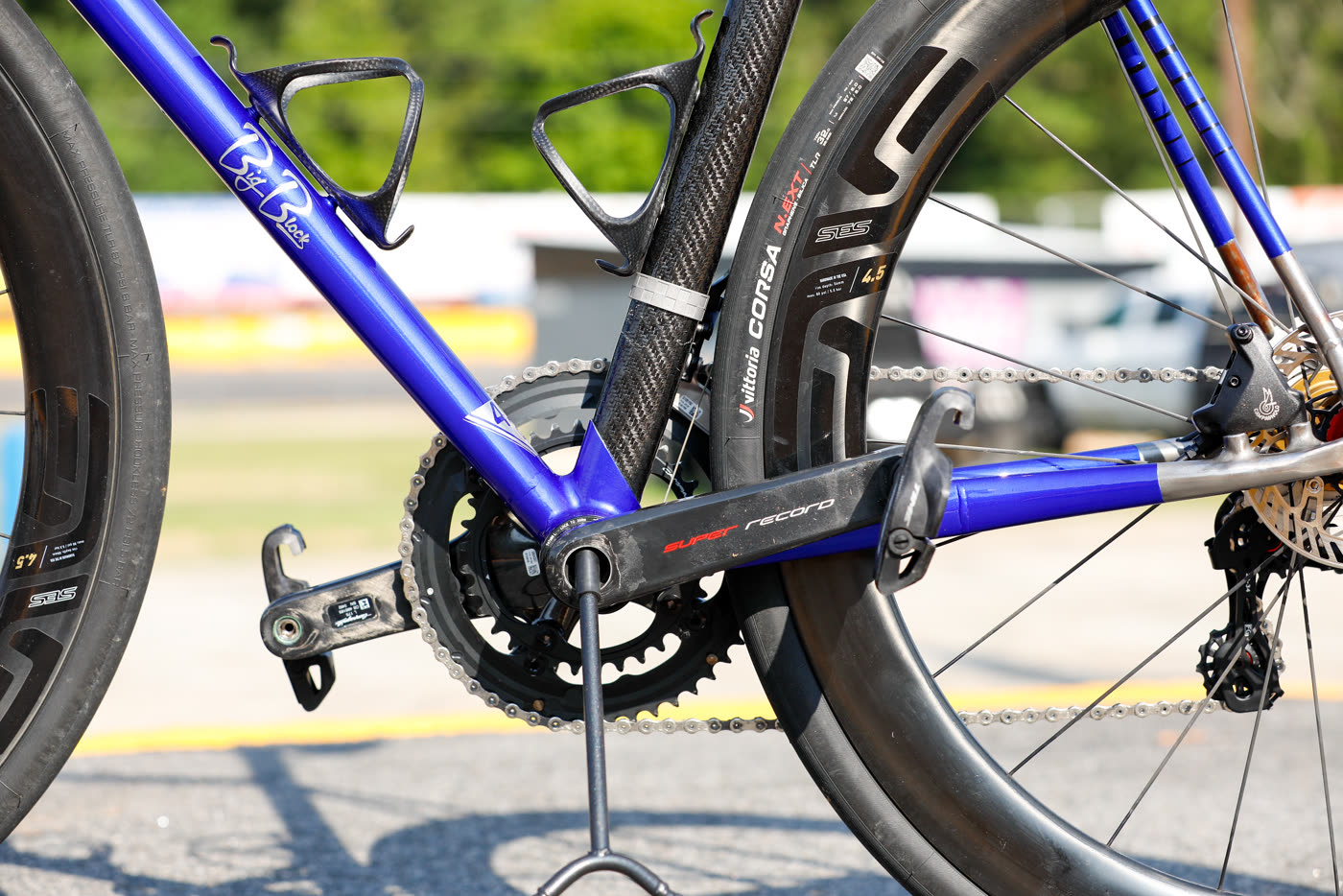

38mm of tire clearance means you can run a 30mm race tire and go KOM hunting, or stuff something fat under it and take the long way home. Mechanical shifting ready, electronic ready, 1x ready, 2x ready. T47 external bottom bracket, UDH hanger, 140mm flat mount rear. Custom paint means anything from mild to wild.
Brass Tacks
What's included
Here's your starting point. Pricing on high complexity multi-color paint jobs, extensive braze-ons, or changes to the build spec are done case by case, but don't be afraid to ask! $1000 deposit is due once geometry and manifest are developed and agreed upon. I will work with you on your goals for the whole build, including specifying all the necessary components, working with parts you have, etc. If you buy parts (stem, hubs, etc) to go with the bike, I'll paint match it to the frame! Payment for parts are due at Build Sheet sign off
The Numbers
| Tubing | Reynolds 853 / Columbus MAX, in-house carbon, 3D-printed 17-4 Stainless Steel |
|---|---|
| Head Tube | IS52 - IS52, custom titanium top cap |
| Bottom Bracket | T47 External - 68mm |
| Shifting | Mechanical and Electronic, 1x or 2x |
| Seatpost | Custom titanium seat mast - Ritchey 1-bolt |
| Tire Clearance | 38mm |
| Rear End | 140mm flat mount |
| Derailleur Hanger | UDH |
| Bar/Stem System | FSA / Vision |
| Finish | Two color standard- paint matched parts if bought together |
| Measurement | Starting Point |
|---|---|
| Stack | varies |
| Reach | varies |
| Head Tube Angle | 71.5° |
| Seat Tube Angle | 74° |
| Front Center | varies |
| Rear Center | 410 |
| BB Drop | 75 |
| Trail | 62 |
Ready to Ride?
Every 427 is built to order, fit to your body, and finished to your vision. Reach out to start the conversation.
Start a Project
